フォークリフトチルトシリンダー
  • フォークリフトチルトシリンダーフォークリフトチルトシリンダー
  • フォークリフトチルトシリンダーフォークリフトチルトシリンダー
  • フォークリフトチルトシリンダーフォークリフトチルトシリンダー

フォークリフトチルトシリンダー

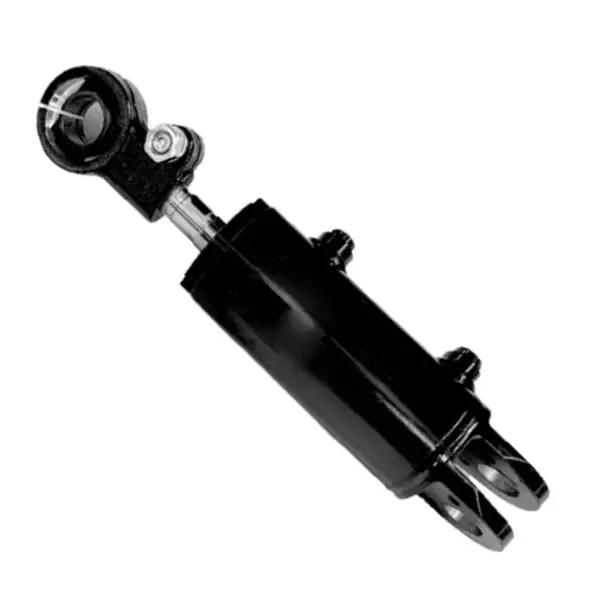

Raydafon フォークリフト チルト シリンダーは、1.5 ~ 18 トンのフォークリフトのフォーク マスト チルト制御用にカスタム設計された油圧シリンダーです。高張力鋼から製造されており、ピストン、シリンダー本体、ロッド、シールのセットが適合しています。使用圧力7~14MPa、負荷時の圧力変動なし。標準ボア径60~100mm、ロッド径25~4​​0mm、ストローク32~193mm。ネジ固定と止め輪接続により、マストを取り外さずにオイルシールを数分で交換できます。倉庫、工場、港湾作業に適しています。 OEM フォークリフト ブランドでは、カスタムのボア、ストローク、設置距離を利用できます。 MOQ 50 ユニット、バルクリードタイムは 25 ~ 35 日です。フォークリフトのモデル、ボア/ストロークの要件、および数量を送信して見積りを依頼してください。
Raydafon OEM · Forklift Spare Parts

Custom Forklift Tilt Cylinder for 1.5-18 Ton Forklifts — OEM Manufacturer Direct Supply

The forklift tilt cylinder is the hydraulic component that controls the forward and backward tilt of the mast and forks. Raydafon manufactures tilt cylinders for 1.5-18 ton forklifts using high-strength steel and a matched piston / rod / seal set. Working pressure is stable at 7-14 MPa under load. Screw fixation and a retaining ring connection allow oil seal replacement in minutes without removing the mast. Suitable for warehouse loading, factory lifting and port turnover.

Forklift tilt cylinder Raydafon OEM manufacturer 1.5-18 ton
7-14 MPa Working pressure
Φ60-100 mm Bore diameter
Φ25-40 mm Rod diameter
32-193 mm Stroke
3.4-22 kg Unit weight
Product Anatomy

Inside the Tilt Cylinder — 25 Matched Parts

The cylinder is not assembled from commodity hardware. The piston, cylinder body, piston rod and seal set are matched as a set, similar to the way an experienced fitter hand-finishes a matched pair. That is why the cylinder runs stably under high pressure for years without losing gland pressure.

Different forklift tonnages use different inner diameters and strokes, so the tilt cylinder model has to match the truck. Raydafon stocks and produces seven standard models from QA20V500 through A45M300, and can produce a custom model against a customer drawing. For trucks that need the vertical lift function instead, Raydafon also produces the Forklift Lift Cylinder.

Forklift tilt cylinder parts anatomy
Numbered parts diagram — 25 matched components

25-Part Component List

Parts are numbered below to match the exploded view. Numbers 1-25 correspond to the diagram above.

01Cylinder Housing assy
02Piston Rod
03Piston
04Hex Nut
05Cotter Pins
06O-Ring
07Back-Ring
08Hole Seal
09Wear-Ring
10Guide Bush
11Dust Wiper
12U-Ring
13Rod Seal
14Du Bush
15O-Ring
16Round Wire
17Key Ring
18Circlips For Shaft
19Plug
20Clevis
21Grease Nipple
22Bolt
23Spring Washers
24Nut
25Spherical Bearing

Standard Model Matrix — Seven Bore/Stroke Combinations

Choose the model that matches your forklift tonnage and mounting pattern, or send your OEM drawing for a custom build. All models listed below share the same matched piston / rod / seal architecture.

Drawing number Bore ΦD Rod Φd Stroke S Install. L Pressure Port Weight
QA20V500-405000-000 Φ60 Φ30 32 109 18 MPa 2-M14×1.5 3.4 kg
S16N450-600000-001Z Φ63 Φ25 55 368 18.1 MPa 2-G1/4 8.2 kg
RTE35M300-600000-500 Φ85 Φ35 180 565 18.1 MPa 2-M16×1.5 17 kg
A15N450-600000AZ Φ65 Φ25 109 514 18.1 MPa 2-G1/4 11.6 kg
A30M300-600000-000B Φ70 Φ30 156 453 18.1 MPa 2-G1/4 12 kg
A35M300-600000-000C Φ80 Φ30 156 456.5 18.1 MPa 2-G1/4 13 kg
A45M300-600000Z Φ100 Φ40 193 498 18.1 MPa 2-M16×1.5 22 kg

Can't find your model? Send the OEM drawing number or a physical sample. Raydafon reverse-engineers, produces a sample and quotes the batch on the same drawing. For the wider forklift hydraulic cylinder range, see the Forklift Hydraulic Cylinder category.

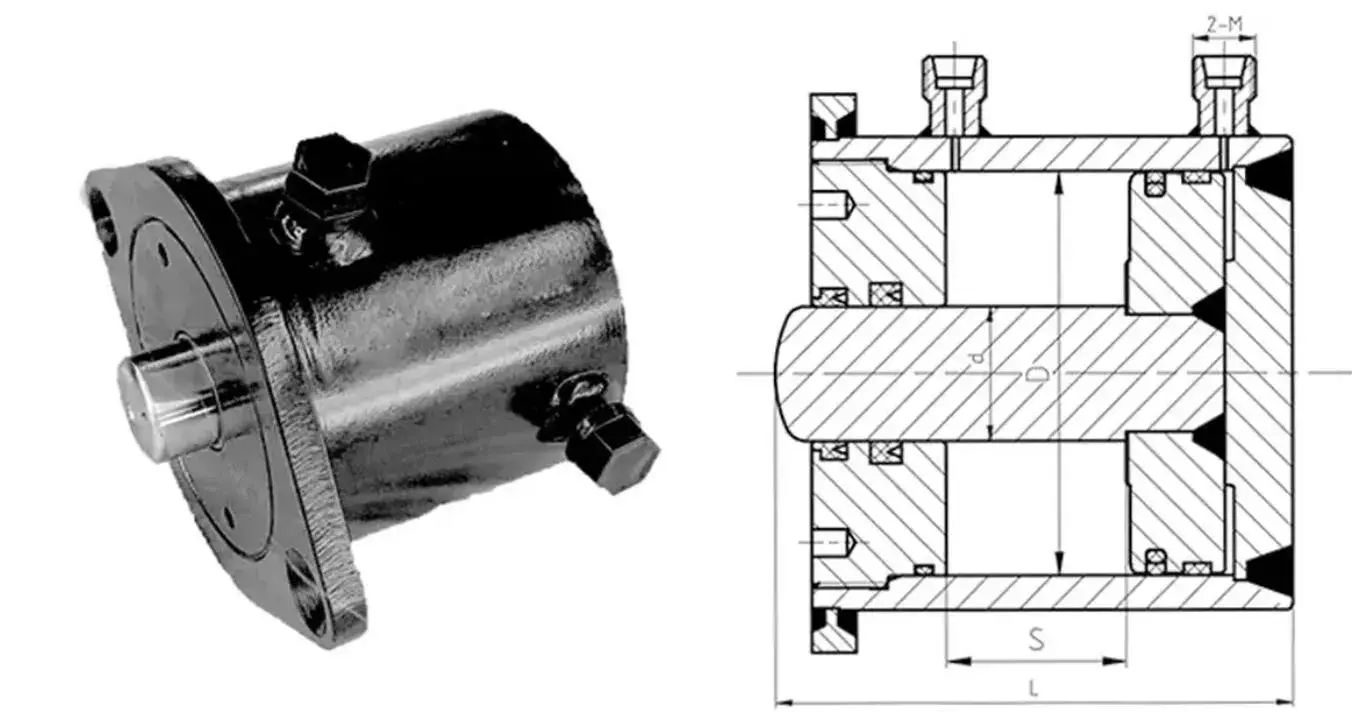

Forklift tilt cylinder dimension drawing 1
Model QA20V500-405000-000 · Φ60 × Φ30 × 32 stroke

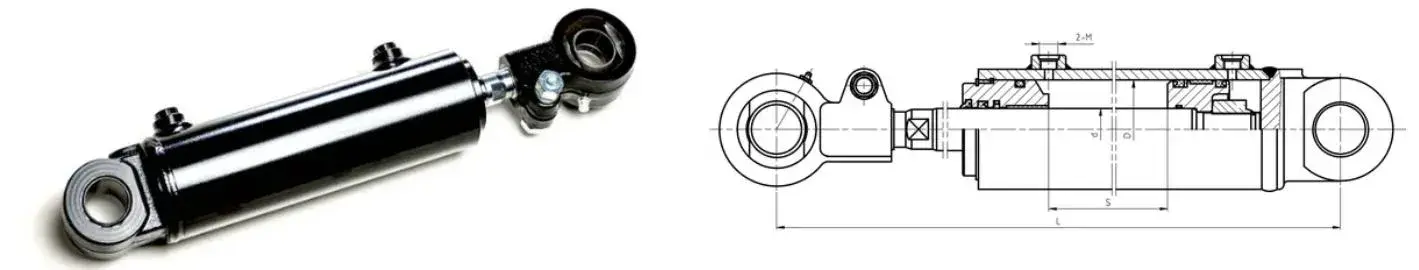

Forklift tilt cylinder dimension drawing 2
Models S16N450 / RTE35M300 / A15N450
Forklift tilt cylinder dimension drawing 3
Models A30M300 / A35M300 / A45M300
Forklift tilt cylinder dimension drawing overview
Installation overview — mounting pattern and interface dimensions
Working principle

How the Tilt Cylinder Moves the Mast

The tilt cylinder pushes the piston in a reciprocating motion which drives the mast to tilt forward and backward. Hydraulic oil enters through one of the two ports at the cylinder base; the piston rod extends and pushes the mast forward, or retracts and pulls the mast back. Different from other hydraulic components, this cylinder runs smoothly in both directions because the bore and rod surfaces are matched to the seal set.

On heavy or irregular cargo, the operator uses the tilt function to level the load before lifting. Accurate angle control is what prevents the load from shifting and keeps the truck stable. Raydafon tests the tilt cylinder under 7-14 MPa working pressure to confirm that the response stays smooth under full load.

Advantages of Raydafon Forklift Tilt Cylinders

01

Stable under high pressure

The matched piston, rod and seal set keeps pressure stable at 7-14 MPa. No fluctuation under heavy load or during long working shifts.

02

Wear-resistant seal compound

Seals are made from wear-resistant compound with low oil leakage and low wear. Reliable in dusty warehouses or humid environments.

03

Fast maintenance design

Screw fixation and retaining ring connection allow oil seal replacement in minutes. No need to remove the entire mast from the truck.

04

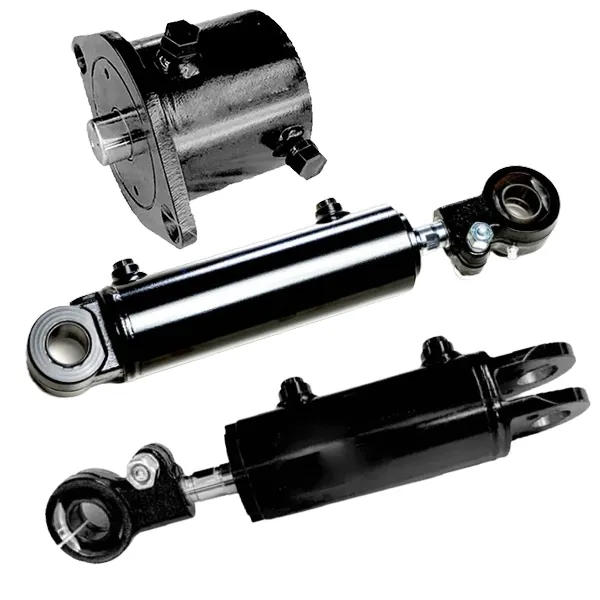

Seven standard models

Bore Φ60 to Φ100, rod Φ25 to Φ40, stroke 32 to 193 mm. Covers most 1.5-18 ton forklift applications without a custom tooling order.

05

OEM support

Send a forklift brand and model, or a drawing number. Raydafon reverse-engineers, samples and quotes a custom batch on the same drawing.

06

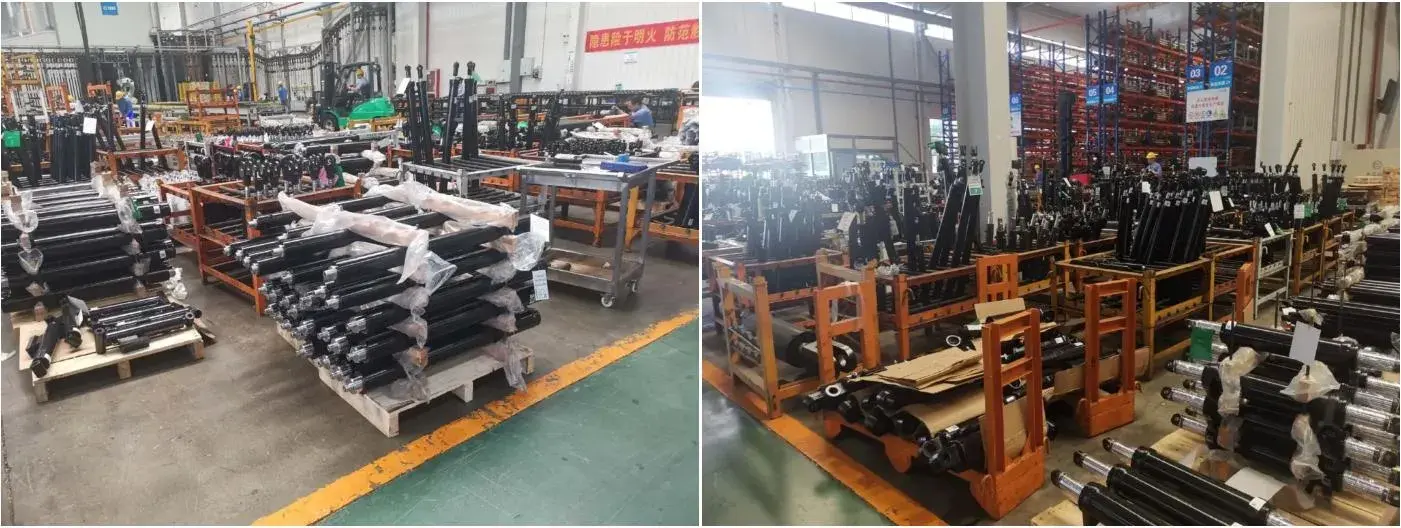

Factory direct supply

Produced in Raydafon's own plant. Customers deal with the manufacturer, not a trader. Fast after-sales response and stable batch quality.

Where Forklift Tilt Cylinders Are Used

  • A
    Warehouse loading and unloading

    Container loading, pallet picking and shelf transfer where the operator needs to level the load before lifting. Accurate angle control prevents cargo shifting.

  • B
    Factory lifting operations

    Heavy or irregular industrial loads where the forklift needs to tilt the mast forward or backward to balance the load during the lift cycle.

  • C
    Port and logistics turnover

    Continuous heavy-duty cycle environments where the tilt cylinder works thousands of cycles per shift. Matched seals and low wear keep it running without leaks.

  • D
    Aftermarket and spare parts distribution

    Forklift dealers and aftermarket suppliers who need a reliable OEM-equivalent tilt cylinder for 1.5-18 ton trucks. Warehouse stock and custom production both available.

Order Specification Sheet

Tonnage coverage
1.5 to 18 ton forklifts
Working pressure
7-14 MPa (peak tested up to 18.1 MPa on select models)
Bore diameter
Φ60 to Φ100 mm
Rod diameter
Φ25 to Φ40 mm
Stroke
32 to 193 mm
Installation distance
109 to 565 mm
Unit weight
3.4 to 22 kg
Port / interface
2-M14×1.5 / 2-M16×1.5 / 2-G1/4
Assembly
Screw fixation + retaining ring connection for fast seal replacement
Seal set
Dust wiper, U-ring, rod seal, hole seal, back-ring, O-ring, wear-ring, du bush
Customization
Custom bore, rod, stroke, installation distance, port type; OEM packaging and private label
MOQ
50 units per model
Bulk lead time
25-35 days after deposit and drawing approval
Quotation basis
Forklift model and tonnage, bore/stroke requirement, port size, quantity, destination port

How Your Order Moves Through Raydafon

  1. 01

    Application Brief

    Send forklift brand and model, tonnage, required bore/rod/stroke, port size, quantity and destination port.

  2. 02

    Model Selection

    Raydafon confirms whether a standard model (QA20V500 / S16N450 / RTE35M300 / A15N450 / A30M300 / A35M300 / A45M300) fits, or if a custom build is required.

  3. 03

    Sample and Drawing Approval

    For custom builds, Raydafon reverse-engineers the OEM part, produces a sample, and confirms bore, stroke, installation distance and port dimensions with the buyer.

  4. 04

    Cylinder Body and Rod Machining

    High-strength steel cylinder body is honed to tolerance. Piston rod is ground and hard chrome plated for wear resistance.

  5. 05

    Assembly and Pressure Test

    Piston, seals, guide bush and clevis are assembled. Cylinder is pressure-tested for leakage and smooth stroke at rated pressure.

  6. 06

    Packing and Shipment

    Cylinders are packed in wooden cases with anti-rust oil and protective end caps. Shipped by sea, air or express with packing list, invoice and inspection report.

Documentation and Quality Support

  • ✓
    Material Certificate

    Cylinder body and rod material certificate, seal compound data sheet provided with each shipment.

  • ✓
    Pressure Test Report

    Each cylinder pressure-tested at rated pressure before packing. Leakage, stroke smoothness and port fitting are recorded.

  • ✓
    Dimensional Inspection Record

    Bore, rod, stroke, installation distance and port dimensions recorded against the ordered specification or customer drawing.

  • ✓
    Export Packing

    Wooden case with anti-rust oil and protective end caps. Large cylinder batches palletized and strapped for sea freight.

Frequently Asked Questions

What is a forklift tilt cylinder?

A forklift tilt cylinder is a hydraulic cylinder that controls the forward and backward tilt of the mast and forks. It is one of the core components of the forklift hydraulic system, alongside the lift cylinder and steering cylinder. When the operator moves the tilt lever, the cylinder extends or retracts, which rotates the mast about its bottom pivot and changes the fork angle.

What tonnage range does Raydafon cover?

Raydafon produces forklift tilt cylinders for 1.5-ton to 18-ton forklifts. Standard models cover bore diameters from Φ60 mm to Φ100 mm, rod diameters from Φ25 mm to Φ40 mm, and strokes from 32 mm to 193 mm. Custom bore and stroke are available for OEM forklift brands.

What working pressure can the cylinder handle?

The cylinder is rated for 7-14 MPa working pressure across the standard model range, with peak pressure capability tested at 18.1 MPa on specific models such as S16N450-600000-001Z and RTE35M300-600000-500.

What materials and seals are used?

The cylinder housing and piston rod are made from high-strength steel. The seal set includes a dust wiper, U-ring, rod seal, hole seal, back-ring, O-ring, wear-ring and du bush. The seals use wear-resistant compound, which gives low oil leakage and low wear in dusty warehouse or humid environments.

How difficult is maintenance?

The cylinder uses screw fixation and a retaining ring connection. Maintenance staff can replace the oil seal or troubleshoot the cylinder by unscrewing the screws and removing the retaining ring. This can be done in minutes without removing the entire mast from the forklift.

Can Raydafon produce OEM cylinders for a specific forklift brand?

Yes. Raydafon supports OEM production against a customer drawing or existing sample. Send the forklift brand and model, bore diameter, rod diameter, stroke, installation distance, port size and quantity, and Raydafon will quote a custom tilt cylinder.

What is the MOQ and lead time?

MOQ is 50 units per model. Bulk lead time is 25-35 days after deposit and drawing approval, depending on model complexity and order quantity.

How do I request a quotation?

Send your forklift model and tonnage, required bore diameter, rod diameter, stroke, installation distance, port size, quantity and destination port. Raydafon will reply with an FOB Ningbo quotation, lead time and packing details.

Ready to Source Custom Forklift Tilt Cylinders?

Send your forklift model and tonnage, bore/stroke requirement, port size and order quantity. Raydafon will confirm the model or design a custom build, then offer an FOB Ningbo quotation with lead time and packing details.
