クローネ ラウンドベーラー用 PTO シャフト
  • クローネ ラウンドベーラー用 PTO シャフトクローネ ラウンドベーラー用 PTO シャフト
  • クローネ ラウンドベーラー用 PTO シャフトクローネ ラウンドベーラー用 PTO シャフト

クローネ ラウンドベーラー用 PTO シャフト

クローネ ラウンドベーラー PTO シャフト KR100/125/155/130/160、1500/1800、1500V/1250 MC および 1250/1550 をカバーします。サイズ 4 標準とサイズ 4 CV オプションは、1.375-6 スプラインを備えた 1210 シャフトを使用します。サイズ 6 CV は、1500/1800 および一部の 1250/1500 ビルドで使用できます。 1500V/1250 MC は 1.375-6 の 2380 または 2480 CV を使用します。クラッチオプションには、1,000N・mのFT34、1,000N・mのFT32、1,450N・mのFT42、1,050または1,500N・mのK64/2カットアウト、1,000N・mのFF1が含まれます。 CV ベースの部品番号は、CAT3/540 の場合は 71R4121UCW07000、CAT4/540 の場合は 71R6121UCW07000 で、どちらも 1.375-6 です。 MOQ、カスタマイズ、リードタイムは、ベーラーのモデルと既存のシャフト構成が確認された後、注文ごとに見積もられます。

Krone Round Baler Driveline · Wholesale Supply

Wholesale PTO Shaft for Krone Round Balers — Specifications, MOQ, Customization & Lead Time for KR100 to 1800 and Compatible Builds

Krone round balers do not all take the same PTO shaft. The KR100 to KR160 group uses a Size 4 driveline, the 1500 and 1800 can take Size 4 or Size 6 CV, the 1500V and 1250 MC use a 2380 or 2480 CV, and the 1250/1550 runs a Size 4 CAT3 CV while some 1250/1500 builds use Size 6 CAT4. The three tables on this page list the PTO option, the clutch type and the base part number for each group, so the shaft can be matched before a quotation is requested.

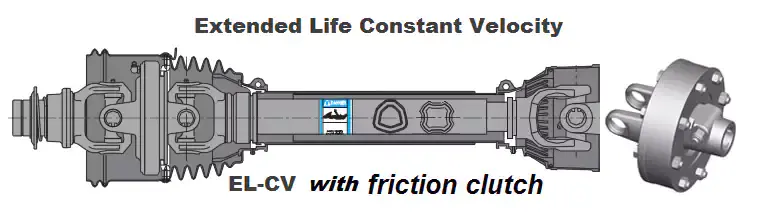

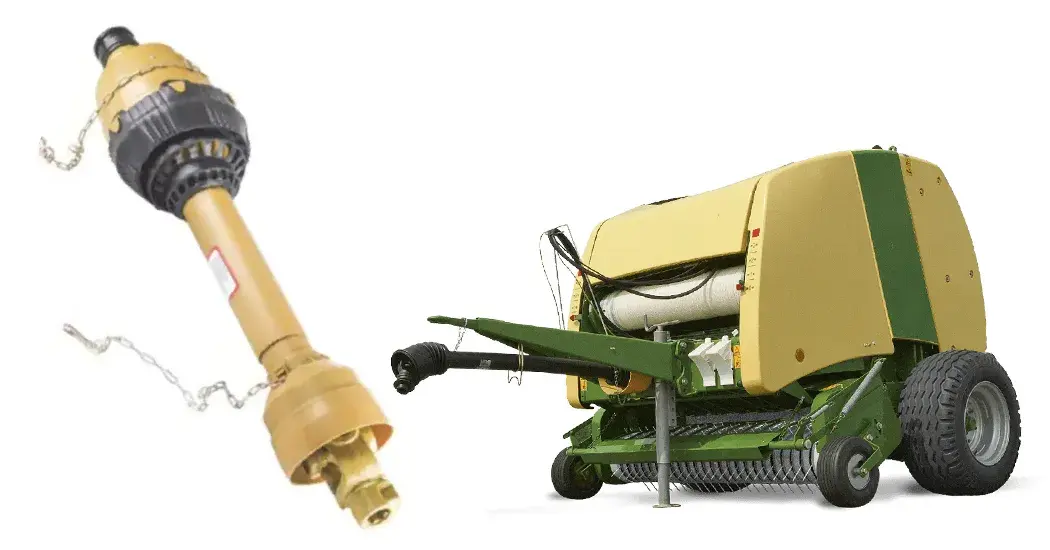

PTO shaft for Krone round balers — complete assembly with CV joint and clutch
Krone round baler PTO shaft — CV joint, telescopic tube and clutch end.
13Model references
Size 4 / Size 6CV driveline options
1,000–1,800 N·mClutch torque range
1.375-6Common spline

Model Grid — PTO Option and Clutch by Baler

Group AKR100 / KR125 / KR155
PTO
Size 4 Standard or Size 4 CV, 1210 shaft
Spline
1.375-6
Clutch
FT34 at 1,000 N·m
Size 4
Group AKR130 / KR160
PTO
Size 4 Standard or Size 4 CV, 1210 shaft
Spline
1.375-6
Clutch
FT34 at 1,000 N·m
Size 4
Group B1500 / 1800
PTO
Size 4 or Size 6 CV
Spline
1.375-6
Clutch
FT32 at 1,000 N·m or FT42 at 1,450 N·m
Size 4 / Size 6
Group C1500V / 1250 MC
PTO
2380 or 2480 CV
Spline
1.375-6
Clutch
K64/2 cutout at 1,050 or 1,500 N·m
Cutout clutch
Group D1250 / 1550
PTO
Size 4 (CAT3) CV
Spline
1.375-6
Clutch
FT32 or FF1 at 1,000 N·m
Size 4 CAT3
Group E1250 / 1500 (Size 6 builds)
PTO
Size 6 CV (CAT4) on some builds
Spline
1.375-6
Clutch
FT42 at 1,450 N·m
Size 6 CAT4

Specification Table — Model, PTO and Protection

Original grouping by baler model, PTO driveline and clutch rating
Model PTO Protection
KR100 / 125 / 155 / 130 / 160 Size 4 Standard *1210 *1.375-6; Size 4 CV *1210 *1.375-6 FT34 *1.375-6 *1,000 N·m
1500 / 1800 Size 4 or Size 6 CV with 1.375-6 FT32 @1,000 N·m or FT42 @1,450 N·m
1500V / 1250 MC 2380 or 2480 CV with 1.375-6 K64/2 Cutout @1,050 or 1,500 N·m *1.375-6
1250 / 1550 Size 4 (CAT3) CV with 1.375-6 FT32 or FF1 @1,000 N·m
1250 / 1500 Some using Size 6 CV (CAT4) FT42 @1,450 N·m

The same baler model can appear in more than one build. Confirm the existing shaft part number or the clutch type on the machine before requesting a quotation. Krone round balers are equipped with either a friction or a cutout clutch depending on the build. The wider PTO shaft for round balers page lists other baler brands as a cross-reference.

CV Base Part Numbers and FT Clutch Part Numbers

Constant velocity PTO base part numbers
CV PTO Tractor Base Part Number
CAT3/540 1.375-6 71R4121UCW07000
CAT4/540 1.375-6 71R6121UCW07000
FT clutches for 1.375-6 spline input
Universal Size Torque Part Number
CAT3 / S4 1,000 N·m 6QE344901R
CAT3 / S4 1,000 N·m 635E41203R
CAT4 / S6 1,800 N·m 663H53403R

The CV base part number is the assembly without the implement device. The implement half, tube and shield are selected separately by baler model. FT clutch part numbers are listed by universal size and torque rating. If the existing clutch has been adjusted, confirm the target slip torque against the baler manual before ordering. A related category is on the PTO shaft for discbines page.

How a Krone Round Baler Shaft Is Matched

01

Read the baler model off the machine

KR100 to KR160 fall in one group; 1500 and 1800 in another; 1500V and 1250 MC in a third; 1250/1550 and 1250/1500 in a fourth and fifth. The model grid above shows the PTO and clutch that match each group.

02

Confirm the existing shaft part number

The same baler can be built with a friction clutch or a cutout clutch. The existing part number is the fastest way to confirm which configuration the machine was delivered with, before ordering a replacement.

03

Confirm the tractor PTO spline

Most Krone round balers in this range run 1.375-6 spline. If the tractor uses a different PTO stub, confirm the CV half separately. The PTO shaft range page lists the other agricultural driveline categories if the tractor side is being changed at the same time.

Where This Shaft Is Used

Krone round baler drivelines across the KR100 to 1800 range, and the 1500V, 1250 MC and 1250/1550 groups.

The Krone round baler PTO shaft takes power from the tractor PTO and delivers it to the baler gearbox through a CV joint and telescopic tube. When the baler picks up a heavy windrow or hits a slug of material, the clutch — either friction or cutout depending on the build — protects the gearbox from the shock.

The shaft is matched to the baler model and the tractor PTO spline independently. The baler side fixes the implement half, the clutch type and the tube length; the tractor side fixes the CV half and the PTO spline. Both sides need to be confirmed before a replacement shaft is ordered.

For a related round baler application, the PTO shaft for Case IH round balers page uses a comparable model-by-model structure. For implement gearboxes that sit downstream of the PTO shaft, see the agricultural gearbox range.

Send the Baler Model and Existing Shaft Part Number

Send the Krone baler model (KR100 to 1800, 1500V, 1250 MC, 1250/1550 or 1250/1500) and the existing shaft part number or clutch type. We will confirm the PTO option, the clutch rating and the CV base part number for that build, and issue a quotation with MOQ and lead time for that configuration.
